ETA 1171
Ligne: 6'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 13.5 mm
Height: 3.2 mm
Hands: 1.00 x 0.50 mm
Base: Felsa 4520

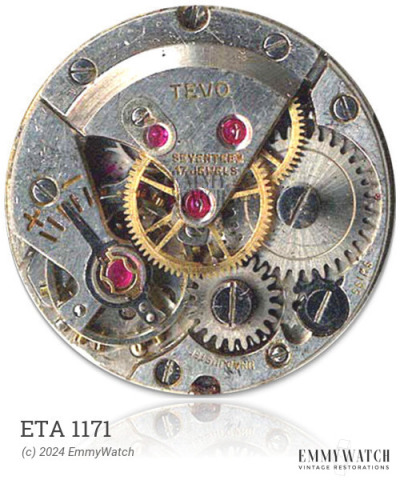

The ETA 1171 watch movement, used in watches manufactured around 1970, features an indirectly driven minute hand that enables a substantial balance. While there is limited information regarding the differences between the ETA 1171 and the 1215 movements, the functions of the ETA 1171 movement primarily include manual winding.
The ETA 1171 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.070 x 180 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
