ETA 1170
Ligne: 8.75 x 12'''
Jewels: 7/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 19.8 x 26.35 mm
Height: 3.7 mm
Hands: 1.24 x 0.68 mm

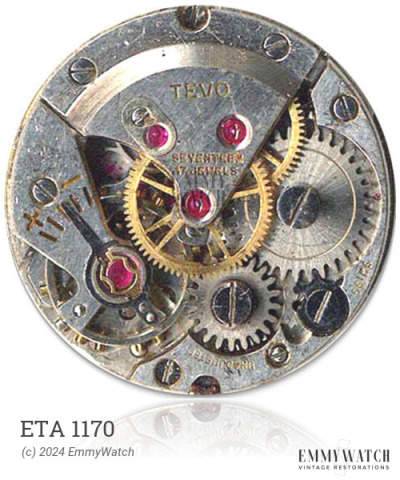

The ETA 1170 watch movement, manufactured around 1935, is a manual wind movement with a sub second function.
The ETA 1170 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2412 | Ordinary/None | Buy staff |
| 2976 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.100 x 300 x 9.0 mm | GR3254 | Manual | Buy mainspring |
| 1.30 x 0.100 x 280 x 8.5 mm | GR3252 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
