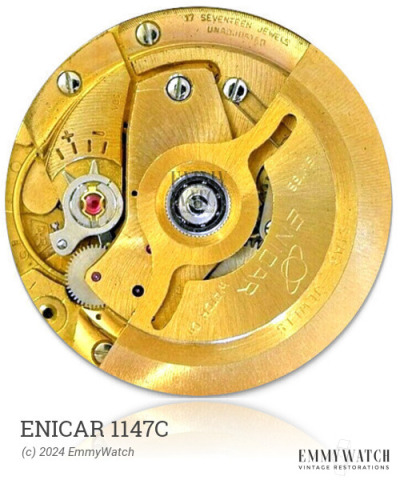

Enicar 1147C
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 26 mm
Hands: 1.30 x 0.90 x 0.22 mm
Base: A. Schild 1402
The Enicar 1147C is a detached manual wind watch movement that was in use around the 1950s. Although the specific differences between the 1402N and the 1493 are not known, this movement offers several functions including automatic winding, sweep second, and various pusher-set features such as day, date hand, month, and moon phase indicators.
The Enicar 1147C features the following functions:
- Automatic Winding
- Date hand: set by pusher at 4h
- Day: set by pusher at 10h
- Month: set by pusher at 2h
- Moon phase: set by pusher at 8h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3605 | Ordinary/None | Buy staff |
| 5479 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| SCREW, MOON PHASE JUMPER | A/1630 | 52593/ETA 1100 | Buy part |
