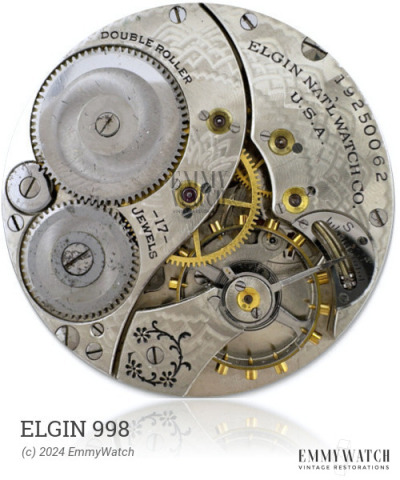

Elgin 998
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Elgin 998 is a manual wind watch movement that features a sub-second function. It is associated with a range of movements including the 170 through 176, but the specific differences between these variations are not known. The movement may offer an optional gold lever and escape wheel. Designations for varying bridge shapes are likely used, although further information is not provided.
The Elgin 998 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.85 x 0.105 x 300 x 9.0 mm | GR5464 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
