Elgin 760
Ligne: 12.5'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 50 hrs
Frequency: 19800 vph
Type: Automatic
Period used: 1958-1969
Diameter: 28.4 mm
Height: 4.5 mm
Hands: 1.50 x 0.80 x 0.18 mm

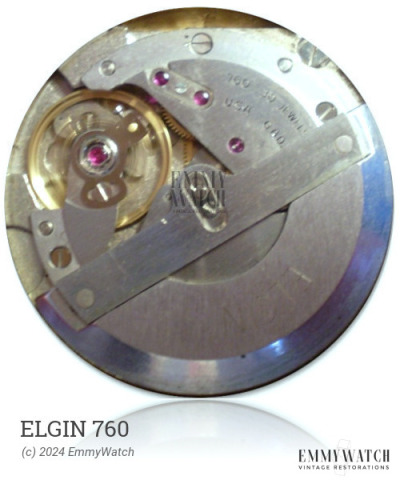

The Elgin 760 watch movement is an automatic movement with sweep seconds functionality. It features Incabloc shock protection and was produced in large quantities between 1958 and 1969, totaling 5,800,000 units.
The Elgin 760 features the following functions:
- Automatic Winding
- Incabloc Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.120 x 340 x 10.0 mm | GR2535X | Auto | Buy mainspring |
| 1.01 x 0.110 x 380 x 10.2 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
