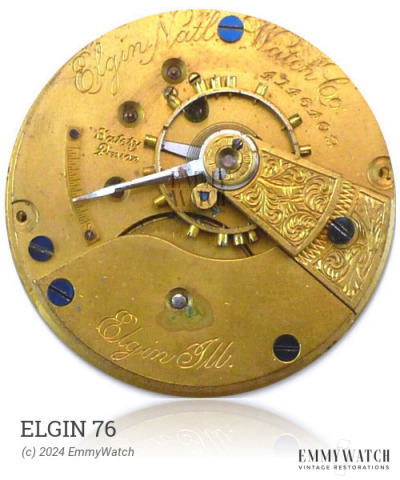

Elgin 76
Ligne: 10.5'''
Jewels: 15
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.7 mm
Height: 4.5 mm
Hands: 1.30 x 0.85 x 0.22 mm
The Elgin 76 is a manual wind mechanical watch movement that features a sweep second hand. It was produced around 1950. Further information regarding the specific differences between the 412KA, 413KA, 416KA, and 417K movements is currently unavailable.
The Elgin 76 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.090 x 320 x 9.0 mm | GR4855 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
