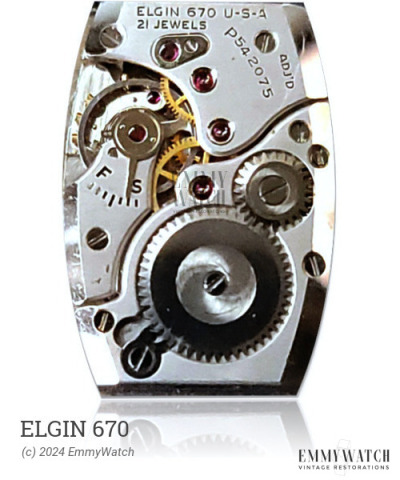

Elgin 670
Ligne: 13'''
Jewels: 15/16/17/21
Lift Angle: 49°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The Elgin 670 is a manual wind watch movement known as the Wehrmachtswerk, or Germany Military Movement. It features various bridge shapes, sometimes with a separate escape wheel cock, differently beveled bridge and plate edges. Later samples may have a ring balance and/or a mobile stud carrier, but lack a shock device. The differences between the 1130C and other calibers in this line, such as the 1142 or 1399, are not known. Additionally, there are two calibers with a 13.5''' size, two with a 14''', and three with an indirect sweep second. These models were only produced for a short period and were replaced by the AS 1188 with a direct sweep second. In terms of functions, the 1130C offers manual winding, a sub-second display, and a calendar, although further details are not provided.
The Elgin 670 features the following functions:
- Calendar
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 340 x 11.5 mm | GR5170 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| FOURTH WHEEL, W/SECOND | 224/371 | Buy part |
