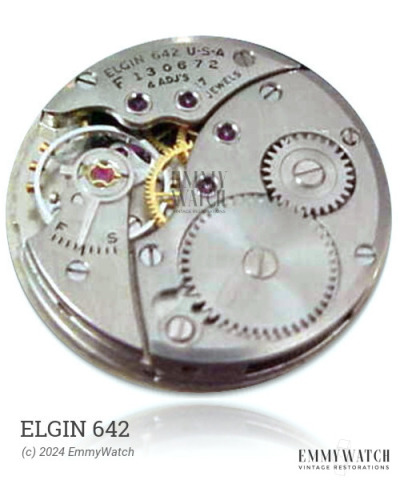

Elgin 642
Ligne: 10.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.3 mm
Height: 3.0 mm
Hands: 1.30 x 0.80 mm
Base: Favre Leuba 253
The Favre-Leuba 272 watch movement features a balance bridge and employs two barrels that are coupled in parallel for enhanced functionality. The winding details can be found in the Favre-Leuba 253 model. Noteworthy modifications were made throughout the production period. This movement is manually wound and was primarily utilized around 1965.
The Elgin 642 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.065 x 210 x 6.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CROWN WHEEL | 420/1211 | Buy part | |
| STEM, USE 401/552 | 200/1516F | Buy part | |
| WINDING PINION | 410/1059 | 410/1059 | Buy part |
