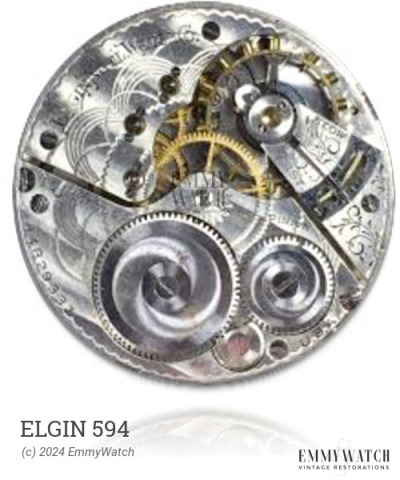

Elgin 594
Ligne: 11.5'''
Jewels: 17
Lift Angle: 51°
Power Reserve: 49 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.4 mm
Hands: 1.40 x 0.90 x 0.19 mm
The Elgin 594 is a manual wind watch movement with sweep seconds functionality. It features an adjustable stud holder and Incabloc shock protection. The movement is marked occasionally with the Movado designation 347 on the base plate near the balance. The Elgin 594 movement was used around the year 1965.
The Elgin 594 features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.110 x 340 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
