Elgin 538
Ligne: 16.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 5.2 mm
Hands: 2.00 x 1.15 mm

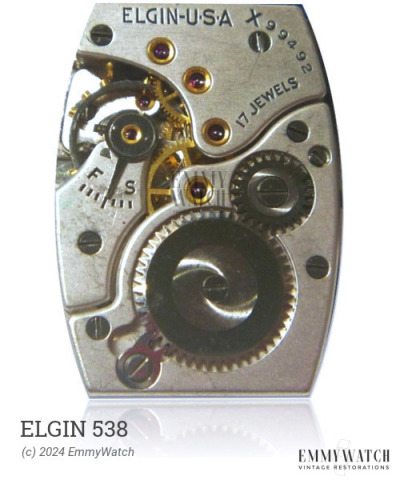

The Elgin 538 is an open face calibre movement with varying bridge shapes. It likely features a left-handed ratchet-wheel screw. This movement is noted for its functions, including stem wind and set, as well as a sweep second hand. It was used during the period of approximately 1940.
The Elgin 538 features the following functions:
- Stem wind and set
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
