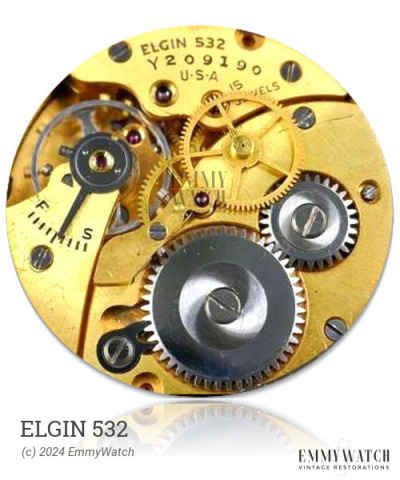

Elgin 532
Ligne: 6'''
Jewels: 17
Lift Angle: 54°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 13.5 mm
Height: 3.15 mm
Hands: 0.90 x 0.45 mm
The Elgin 532 is a manual wind backwinder watch movement commonly used in watches from approximately 1960.
The Elgin 532 features the following functions:
- Manual wind backwinder
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.060 x 5.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| JEWEL, INCA BALANCE 105X42X07 | 400/65 | 211.07/INCA #24 | Buy part |
| JEWEL, INCA UPPER CAP 90X23 | 400/67 | 221.11/INCA #22 | Buy part |
| JEWEL, LOWER CAP INCA 90X13 | 400/68 | 222.11/INCA #23 | Buy part |
| LOWER UNIT D180 H7 | 213.20.7 | Buy part | |
| SHOCK SPRING | 270.03/INCA | Buy part | |
| UPPER UNIT D190 H7 | 218.12.190.7 | Buy part |
