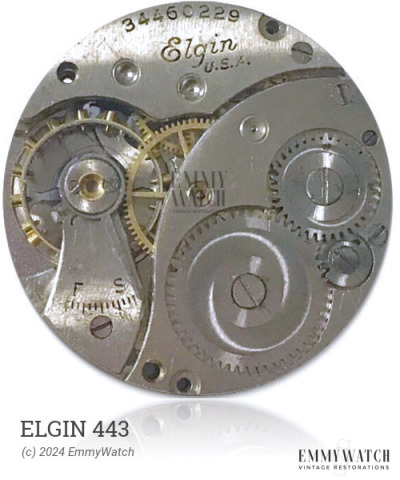

Elgin 443
Ligne: 8.75'''
Jewels: 15/17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 19.75 mm
Height: 3.5 mm
Hands: 1.20 x 0.60 / 0.20 mm
The Elgin 443 is a manual wind watch movement with sub second functionality. It is part of the ETA 790-799, 802, 803, 807-809, 878, 881, and 884 series, and its period of use can be traced back to approximately 1945. However, specific technical differences among these movements are not known.
The Elgin 443 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.090 x 240 x 7.5 mm | GR4098 | Manual | Buy mainspring |
| 1.50 x 0.090 x 220 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
