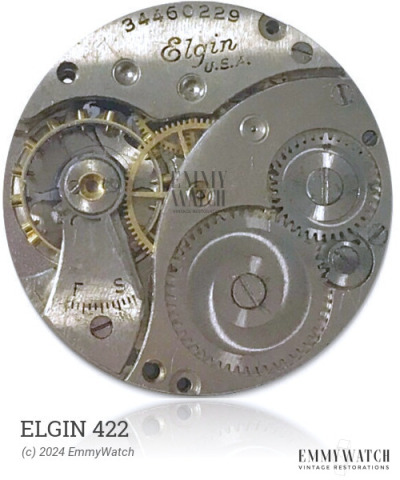

Elgin 422
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.7 x 19.15 mm
Height: 3.9 mm
Hands: 1.10 x 0.60 mm
The Elgin 422 watch movement is a mechanical movement that falls within the 75, 751-759, and 7510-7513 series. It is a manual wind movement that was commonly used around 1945.
The Elgin 422 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.080 x 280 x 8.0 mm | GR5212 | Manual | Buy mainspring |
| 1.80 x 0.080 x 280 x 7.5 mm | GR5212 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
