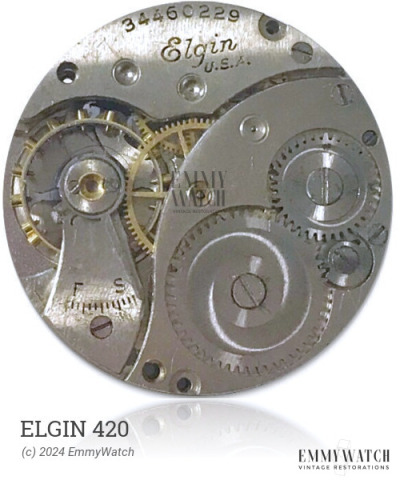

Elgin 420
Ligne: 10.5'''
Jewels: 17
Frequency: 21600 vph
Type: Manual Wind
Period used: 1968-
Diameter: 23.7 mm
Height: 3.5 mm
Hands: 1.40 x 0.80 / 0.20 mm
Base: Peseux 7060
The Elgin 420 is a manual wind mechanical watch movement introduced in 1968. It features a sub second function and is designed for use in watches produced from 1968 onwards.
The Elgin 420 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
