Elgin 4
Ligne: 11.5'''
Jewels: 15/17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1950-
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.60 x 0.95 x 0.21 mm

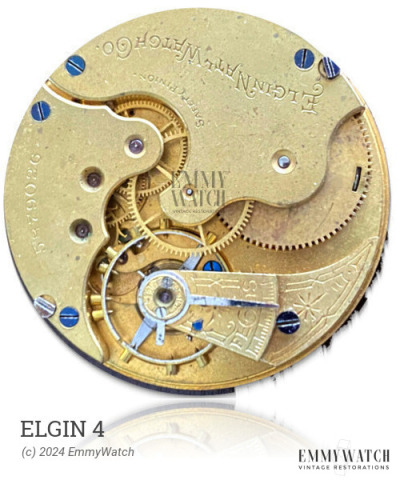

The Elgin 4 watch movement, introduced in the 1950s, features wheels made from beryllium bronze. This manual wind movement includes a sweep seconds function.
The Elgin 4 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.105 x 260 x 8.5 mm | GR3678 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
