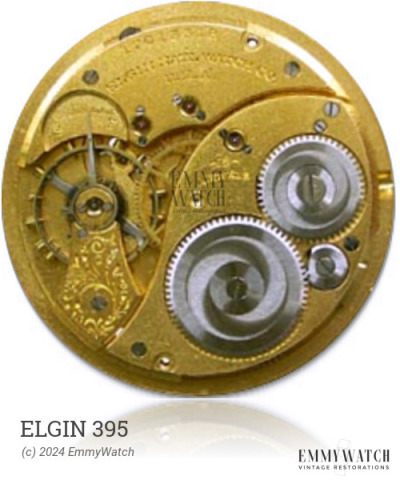

Elgin 395
Ligne: 5.75 x 8.5'''
Jewels: 15/16/17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 12.85 x 19.55 mm
Height: 3.7 mm
Hands: 1.00 x 0.55 mm
The Elgin 395 watch movement, along with several other models including 1085, 1102, 1108, 1137, 1258, 1262, 1271, 1275, 1292, 1296, 1301, 1324, 1374, 1385, 1452, and 1152 with a sweep second hand, is a manual wind movement. In terms of technical differences between these models, no specific information is available.
The Elgin 395 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 115 | Ordinary/None | Buy staff |
| 217 | Ordinary/None | Buy staff |
| 246 | Incabloc | Buy staff |
| 3240 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 280 x 7.5 mm | GR4069 | Manual | Buy mainspring |
| 1.50 x 0.075 x 260 x 7.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.080 x 240 x 7.0 mm | GR4076 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
