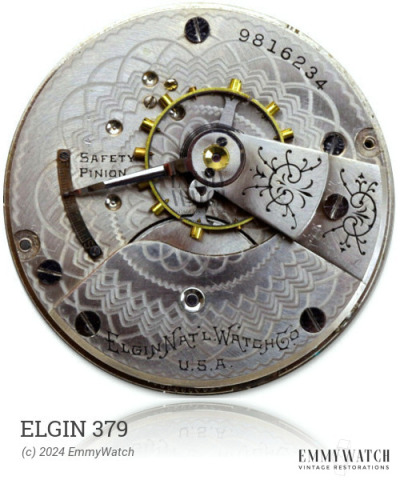

Elgin 379
Ligne: 19.5'''
Jewels: 7/9
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1980
Diameter: 44.8 mm
Height: 9.6 mm
Hands: 1.50 x 0.35 / 1.35 mm
The Elgin 379 is an open face calibre watch movement that offers both pin or pallet lever options. It features a stop- and split-second function with pillar wheels. In the case of the pallet lever option, it incorporates a barrel with Geneva stopwork. The movement includes various functions such as a timer rattrapante with 60-second (0.2s) and 30-minute capabilities, operated by a pillar wheel. Additionally, it has the possibility of a 30-second (0.1s) and 15-minute option, an addition timer, stem winding, and a sweep second hand. The Elgin 379 movement was widely used around 1980.
The Elgin 379 features the following functions:
- Addition timer
- Option: 30s (0.1s), 15min
- Stem wind
- Sweep second
- Timer rattrapante, 60s (0.2s), 30min, pillar wheel
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
