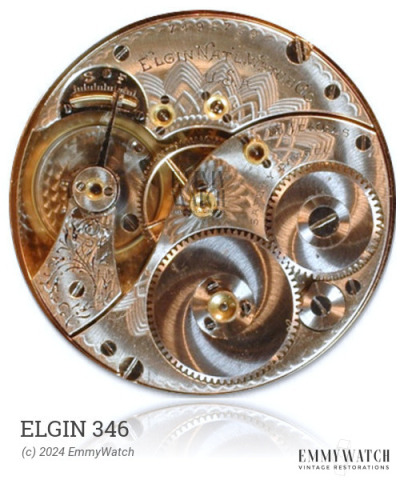

Elgin 346
Ligne: 5 x 7.25'''
Jewels: 17
Lift Angle: 51°
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1960-1962
Size: 11.5 x 16.35 mm
Height: 3.25 mm
Hands: 0.95 x 0.56 mm
Base: Zenith 11
The Elgin 346 is a mechanical watch movement that was produced from 1960 to 1962, with a total of 42,000 units manufactured. It is a manual wind movement that features Incabloc Shock Protection.
The Elgin 346 features the following functions:
- Incabloc Shock Protection
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.070 x 6.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
