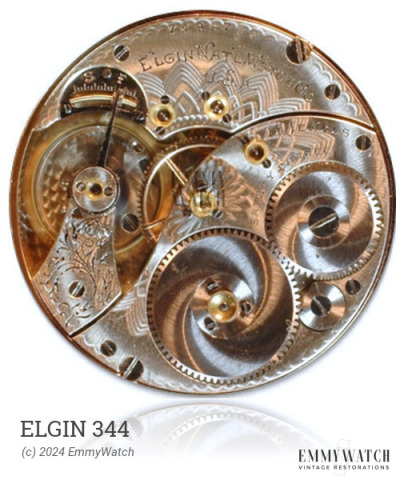

Elgin 344
Ligne: 11.5'''
Jewels: 3/7/17
Lift Angle: 46°
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.30 x 0.80 x 0.21 mm
The Elgin 344 watch movement features a pin-lever escapement and a ratchet on the dial side. It includes a crown mechanism with a rocker bar. This movement is manually wound and offers a sweep seconds function. It also incorporates an adjustable stud holder. The Elgin 344 movement was predominantly used around the year 1975.
The Elgin 344 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
