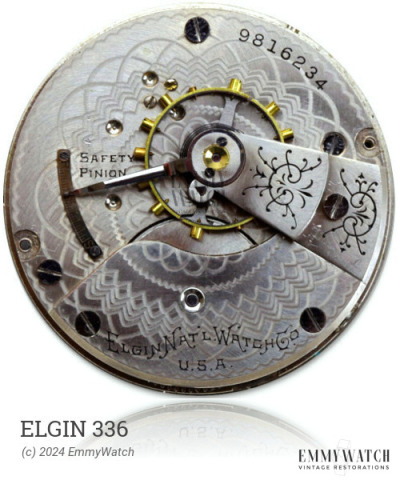

Elgin 336
Ligne: 7.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1965-1972
Diameter: 17.5 mm
Height: 3.3 mm
Hands: 1.20 x 0.70 x 0.20 mm
Base: ETA 2541
The Elgin 336 is a manual wind watch movement that was used during the period 1965-1972. It features a sweep second hand and a date function that can be set by changing the time between 21:20-24h. The specific differences between the 781, 784, and 3305 variations of the movement are not known.
The Elgin 336 features the following functions:
- Date: set by changing 21:20-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
