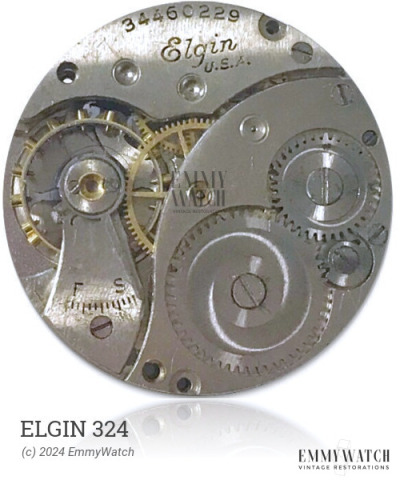

Elgin 324
Ligne: 10.5'''
Jewels: 15/17/21
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.3 mm
Hands: 1.30 x 0.90 x 0.21 mm
The Elgin 324 is a manual-wind mechanical watch movement. It features a sweep second hand and a calendar function, with the date hand set by changing the 20-24 hour time. The movement was in use around 1955.
The Elgin 324 features the following functions:
- Calendar
- Date hand: set by changing 20-24h
- Manual Winding
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 340 x 9.5 mm | GR3666 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
