Elgin 322
Jewels: 19
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1958-1963
Size: 19.3 x 23.8 mm
Height: 4.5 mm
Hands: 1.14 x 0.78 x 0.22 mm

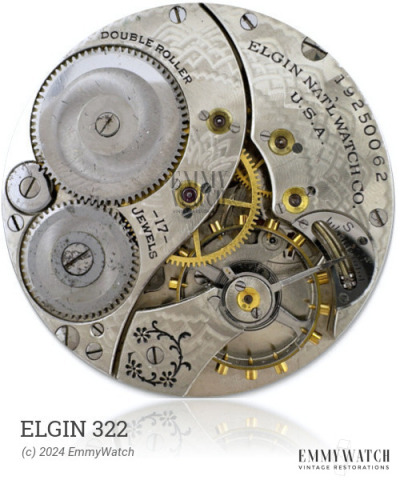

The Elgin 322 watch movement, which was used from 1958 to 1963, features a flat freesprung hairspring and a DuraBalance regulator. The regulator lever of the balance with two regulating weights allows for simultaneous shifts along the spiral-shaped spokes. The balance of the movement is protected by shock protection through the elastical balance spokes. It is a manual wind movement with a sweep second function.
The Elgin 322 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
