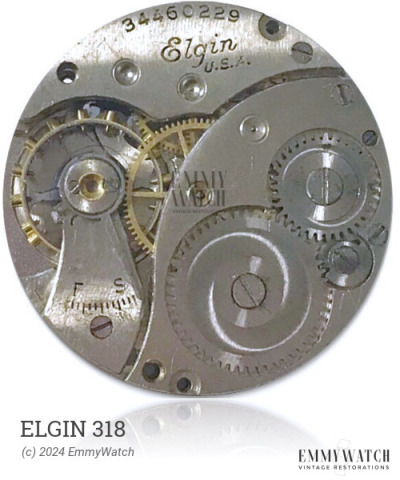

Elgin 318
Ligne: 15'''
Jewels: 16/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 33.85 mm
Height: 3.4 mm
Hands: 1.60 x 1.00 / 0.18 mm
The Elgin 318 watch movement is a hunter calibre with a Breguet hairspring. The specific differences between the 584 and 586 movements are not known. It features stem winding and setting, as well as a sub-second function. The 586 movement was commonly used around the year 1955.
The Elgin 318 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.165 x 400 x 13.5 mm | GR3028 | Manual | Buy mainspring |
| 1.20 x 0.170 x 350 x 13.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
