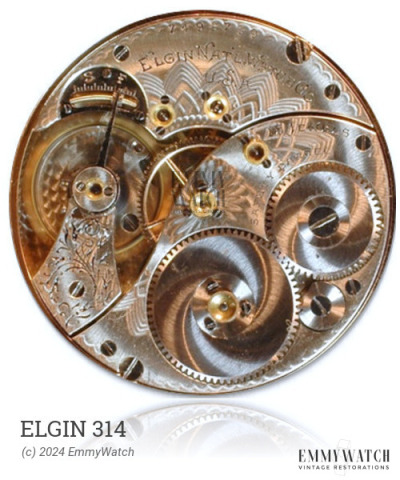

Elgin 314
Ligne: 10.5'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 41 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1970-1974
Diameter: 23.4 mm
Height: 3.15 mm
The Elgin 314 watch movement was produced in a quantity of 25,800 units from 1970 to 1974. It shares similarities with the IWC 402 movement, including combined settings for the escapement wheel and steel lever using Lubrifix-66. It also features a Breguet hairspring and adjustment screws on the balance spokes. This movement is manually wound and includes a sweep second function.
The Elgin 314 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING | 770/202 | 40203/IWC 402 | Buy part |
| STEM, GENUINE | 401/691 | Buy part | |
| SWEEP SECOND FRICTION SPRING | 471/52 | 471/52 | Buy part |
