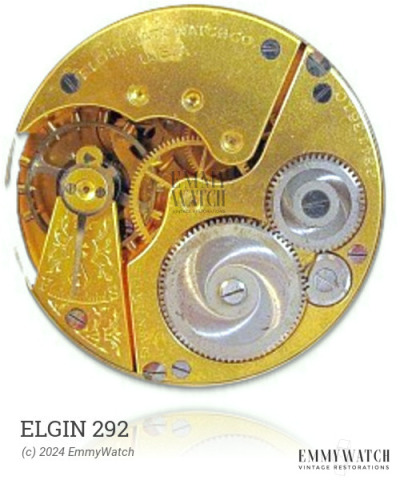

Elgin 292
Ligne: 19.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 43.55 mm
Height: 6.4 mm
Hands: 2.08 x 0.62 / 0.25 mm
The Elgin 292 watch movement is an open face calibre with a pin-lever escapement. It features a ratchet on the dial side and a hidden crown mechanism with a rocker bar. The movement is built on a two-layer base plate. It offers stem winding and setting functionality, as well as a sub-second display. The Elgin 292 movement was utilized around the year 1960.
The Elgin 292 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.200 x 460 x 16.0 mm | GR6095 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
