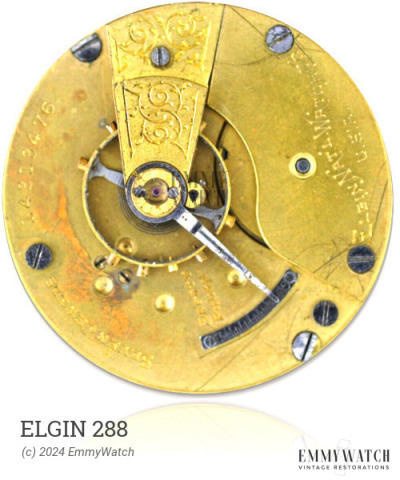

Return To ShopThe Elgin 288 watch movement is a manual wind movement with sub second functionality. It was used during the period of 1936-1944. Some notable features of this movement include a Breguet hairspring and short edges that can be straight or curved. Additionally, there is an option for an optional cover plate and raised hands for strongly curved dials. The movement is partially derived from the ETA 735, although the differences between the 7AN and 7AP variants are not specified.
The Elgin 288 features the following functions:
Ronda Reference # | Shock System | Buy |
---|---|---|
404 | Ordinary/None | Buy staff |
406 | Ordinary/None | Buy staff |
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
1.25 x 0.100 x 360 x 9.5 mm | GR3113 | Manual | Buy mainspring |
1.25 x 0.100 x 340 x 9.5 mm | GR3112 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BALANCE COMPLETE, BREGUET | 721/172 | 721/172 | Buy part |
CANNON PINION, HT 2.50 | 11/BUL 7AP | Buy part | |
CANNON PINION, HT 2.90 | 240/215 | Buy part | |
CANNON PINION, HT 3.90 | 11D/BUL 7AK | Buy part | |
HAIRSPRING, BREGUET | 61A/BUL 7AP | 61A/BUL 7AP | Buy part |
MAINSPRING 1.25-.10-360 9,5 | MS-3511R | GR 3113 | Buy part |
ROLLER, INCABLOC 180X80X36 | 82S/148R | 730/AUR 18 | Buy part |
STAFF | 100/120 | 56/BUL 7AK | Buy part |
STEM, FEMALE | 360/41 | 360/ETA 735 | Buy part |
STEM, T10 L7.75 | 200/109F | 16/BUL 7AK | Buy part |
STUD | 738/ETA 735 | 62/BUL 7AP | Buy part |
WINDING PINION | 410/199 | 410/199 | Buy part |
WINDING PINION, 14T | 410/198 | 410/198 | Buy part |
