Elgin 268
Ligne: 6'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.2 mm
Hands: 1.00 x 0.50 mm
Base: ETA 2442

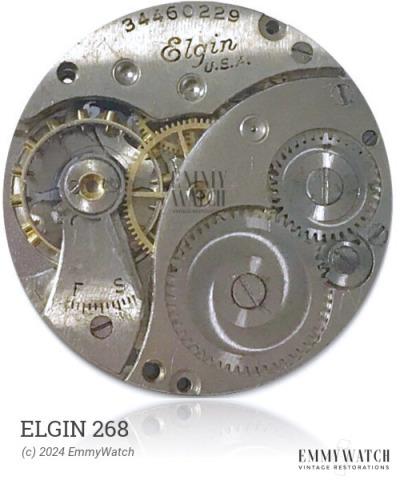

The Elgin 268 watch movement features an early fixed or later mobile stud carrier, which enables precise adjustments. The indirectly driven minute wheel accommodates a large balance, enhancing accuracy. Though differences between the 21 and 211 are unknown, this movement offers manual winding capability, an adjustable stud holder, and an offset center wheel.
The Elgin 268 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Offset Center Wheel
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
