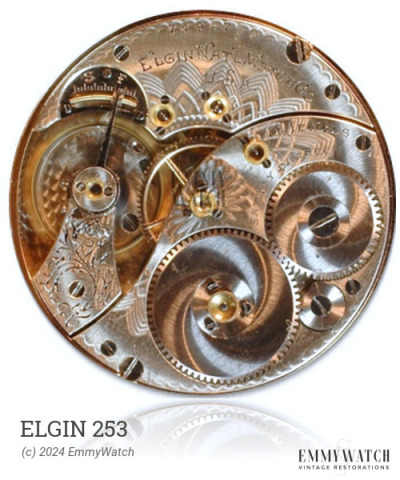

Elgin 253
Ligne: 10.5'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.65 mm
Height: 4.0 mm
Hands: 1.40 x 0.80 / 0.18 mm
The Elgin 253 is a manual wind mechanical watch movement featuring a sub second function. It belongs to a series of movements, including the 75, 78, 79, 83, 84, 88, 89, 94, 97, 98, 103, 105, 106, 129, and 148, which likely only differ in bridge shapes as indicated in the catalog.
The Elgin 253 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2445 | Ordinary/None | Buy staff |
| 2446 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 320 x 9.0 mm | GR5254 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
