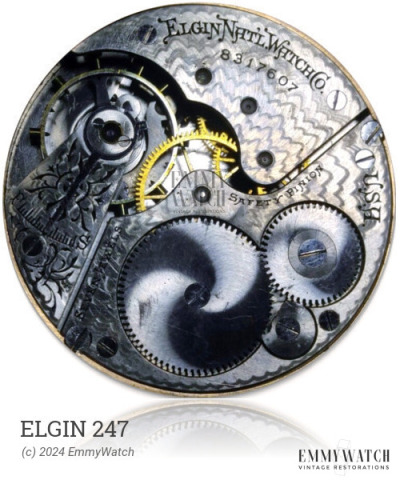

Elgin 247
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1948-1949
Diameter: 23.8 mm
Height: 3.6 mm
Hands: 1.25 x 0.60 / 0.22 mm
The Elgin 247 is a manual wind mechanical movement used in watches during the period of 1948-1949. It features a Breguet hairspring and exhibits only minor differences when compared to the 10BM movement. It includes sub second functionality.
The Elgin 247 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 404 | Ordinary/None | Buy staff |
| 406 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 300 x 9.0 mm | GR3254 | Manual | Buy mainspring |
| 1.30 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
