Elgin 236
Ligne: 12'''
Jewels: 15/17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 27 mm
Height: 3.45 mm
Hands: 1.50 x 0.80 / 0.20 mm

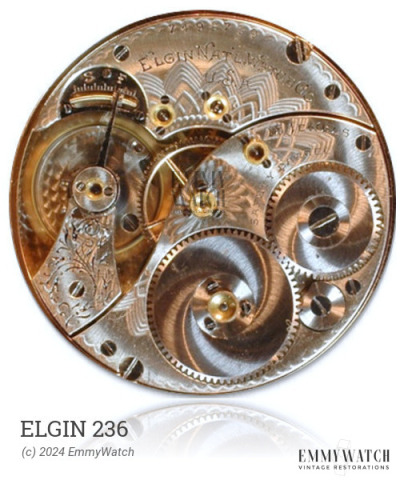

The Elgin 236 watch movement, along with its variations 272, 274, 275, 277, 279, and 2710, showcases similarities except for the differing bridge layouts. This movement is characterized by its manual wind functionality, sub second display, and was predominantly used during the approximate period of 1955.
The Elgin 236 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1030 | Ordinary/None | Buy staff |
| 1043 | Ordinary/None | Buy staff |
| 2678 | Incabloc | Buy staff |
| 3194 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 390 x 11.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.115 x 360 x 10.5 mm | GR3717 | Manual | Buy mainspring |
| 1.30 x 0.140 x 380 x 12.0 mm | GR3358 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
