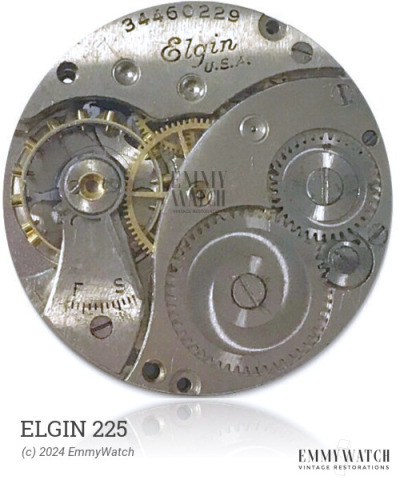

Elgin 225
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 47 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1980
Size: 15.35 x 18.2 mm
Height: 3.45 mm
Hands: 1.00 x 0.55 mm
The Elgin 225 watch movement is a manual wind movement featuring an adjustable stud holder and shock protection. It does not have a second hand and was commonly used around the 1980s. Details regarding the specific differences between the 6660, 6662, and 6663 movements are not known.
The Elgin 225 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
- Without Second Hand
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
| 1.50 x 0.065 x 220 x 6.0 mm | GR4049 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
