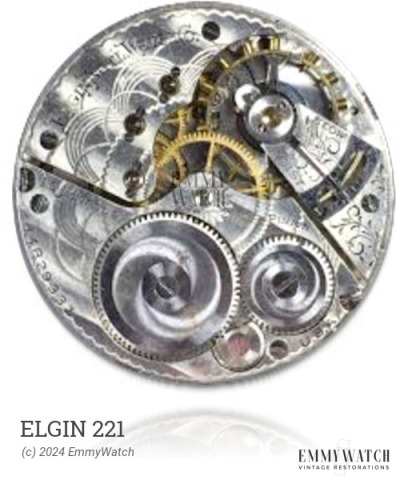

Elgin 221
Ligne: 12'''
Jewels: 1/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1973-1974
Diameter: 27 mm
Height: 6.8 mm
Hands: 1.50 x 0.90 x 0.25 / 0.20 x 0.20 mm
The Elgin 221 watch movement, produced during the period of 1973-1974, features a pin-lever escapement and employs an indirect minute mechanism with a hand friction clutch on the barrel. Variants within this family are not extensively documented, leading to limited knowledge. The movements are typically identified by the name of the most commonly produced variant. Additional codes for specific features may be used if the official designation is unknown. The movement incorporates a manual-wind chronograph with a 60-second and 15-minute recording capability, utilizing a cam switching mechanism. It also includes a sub-second function and a date feature that can be quickly adjusted through reverse setting.
The Elgin 221 features the following functions:
- Date: quickset by reverse setting
- Manual-wind chronograph, 60s, 15min, cam switched
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.135 x 280 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
