Elgin 203
Jewels: 15/17
Power Reserve: 49 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1950-1951
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.12 x 0.64 / 0.18 mm

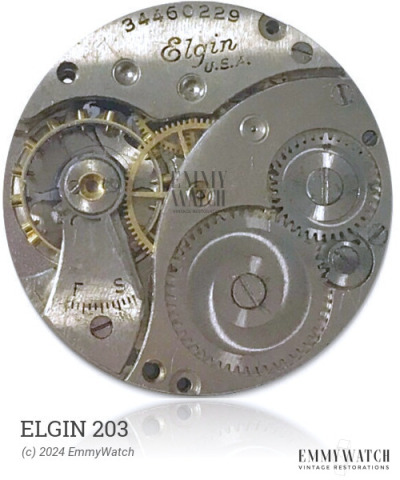

The Elgin 203 watch movement, produced between 1950 and 1951, saw a production of 54,000 units. It belongs to the model 16 series and incorporates a Breguet hairspring. This manual wind movement features a sub second function.
The Elgin 203 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.100 x 300 x 9.0 mm | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BARREL AND COVER | 5241/ELG | 6-532/ELG | Buy part |
| BARREL ARBOR | 5236/ELG | 1-532/ELG | Buy part |
| MAINSPRING 1.65-.10-300 9 | MS-JA122 | GR 4736-DBH | Buy part |
| MAINSPRING 8/0 | 258-532/ELG .0039 | Buy part | |
| MAINSPRING 8/0 | 258-532/ELG .0038 | Buy part | |
| MAINSPRING 8/0 | 258-532/ELG .0043 | Buy part | |
| MAINSPRING 8/0 | 6002/ELG .0033 | Buy part | |
| MAINSPRING, 1.65X.095X300 DBH | GR 4732-DBH | Buy part | |
| MAINSPRING, 1.65X.105X300 DBH | 6002/ELG .0041 | Buy part | |
| STEM, TAP 9 | 5238/ELG | 3-532/ELG | Buy part |
