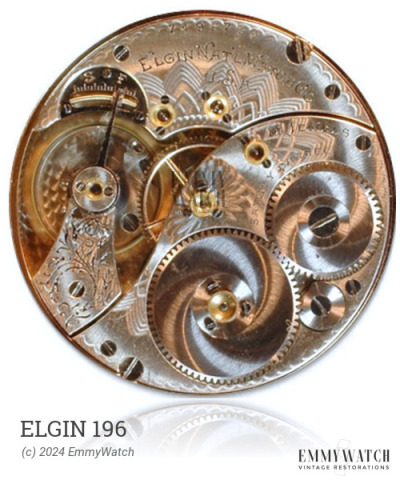

Elgin 196
Ligne: 6.75 x 11'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 15.1 x 25 mm
Height: 3.3 mm
Hands: 1.20 x 0.60 mm
The Elgin 196 is a manual wind watch movement that was used during the approximate period of 1930. It shares similarities with the A. Schild 500, 501, 543, and 626 movements, although the exact differences between them are not known.
The Elgin 196 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.00 x 0.100 x 260 x 8.0 mm | GR2440 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
