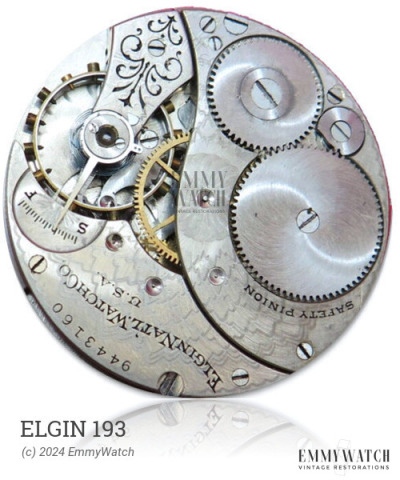

Elgin 193
Ligne: 8.75'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.75 mm
Height: 3.55 mm
Hands: 1.25 x 0.70 / 0.20 mm
The Elgin 193 is a manual wind movement with a sub second function. It features a bimetallic screw balance and a stem mechanism without a setting-lever spring. The bridge shapes may vary from the Ebel 8.75'''. It is one of the Felsa movements released around 1925, belonging to a series that includes models 158, 159, 185, 208, 212, 220, 238, 246, 251, 259, 261, and 277.
The Elgin 193 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
