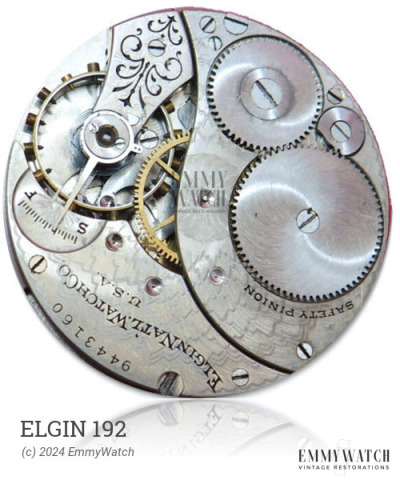

Elgin 192
Ligne: 11.5'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.9 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Elgin 192 watch movement is a mechanical movement that is based on the manual wind calibre AS 1687/1688. The specific differences between the 33 and 33.09 are not known. This movement offers various functions, including manual winding, a sweep second hand, and a calendar with the ability to set the date by changing 20:40-24h. It also features the Incabloc Shock Protection system. The Elgin 192 movement was used during the period around 1960.
The Elgin 192 features the following functions:
- Calendar
- Date: set by changing 20:40-24h
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.130 x 300 x 9.5 mm | GR2988 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
