Elgin 170
Ligne: 11'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1929
Diameter: 24.85 mm
Height: 4.1 mm
Hands: 1.35 x 0.72 / 0.22 mm

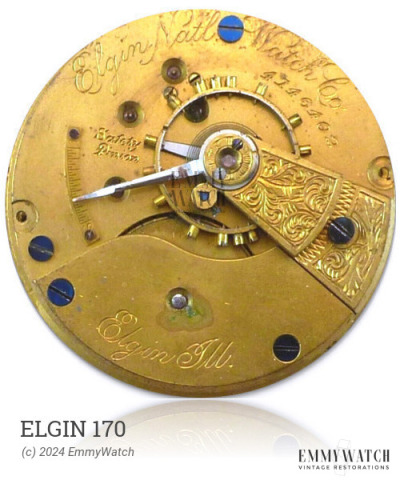

The Elgin 170 is an open face calibre mechanical watch movement that was in use around 1929. It features a bimetallic screw balance and a flat hairspring, with the optional inclusion of a Breguet hairspring. The movement allows for stem winding and setting, and includes a sub second function.
The Elgin 170 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.105 x 340 x 9.5 mm | GR3969T | T | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
