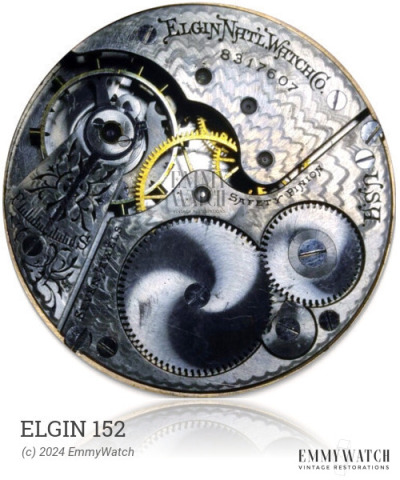

Elgin 152
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.75 mm
Height: 3.8 mm
Hands: 1.40 x 0.80 / 0.20 mm
Base: Judex 120
The Elgin 152 is a mechanical watch movement with a flat or bevelled base plate. It features manual winding, a sub-second function, and was primarily utilized in watches manufactured around the year 1955.
The Elgin 152 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
