Elgin 151
Jewels: 7
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1899-1903
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm

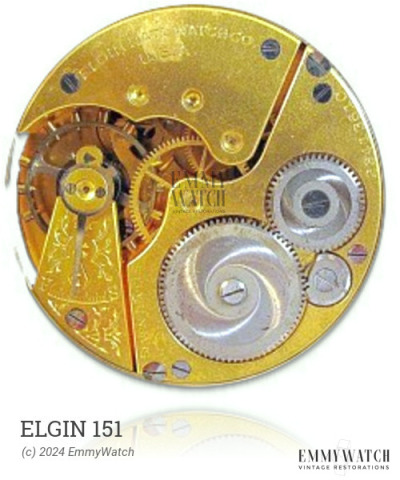

The Elgin 151 watch movement, also known as the calibre model 7, was produced from 1899 to 1903 with approximately 22,000 units manufactured. It features an open face design with a bimetallic screw balance and a Breguet hairspring. The movement incorporates a negative stem mechanism, allowing for convenient switching between winding and setting functions. Additionally, it includes a sub second dial.
The Elgin 151 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.64 x 0.190 x 560 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
