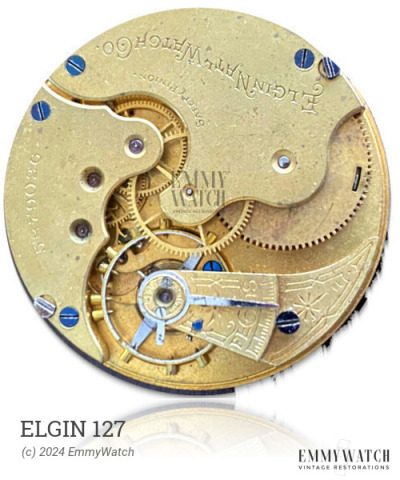

Elgin 127
Ligne: 10.5'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 4.0 mm
Hands: 1.22 x 0.80 / 0.18 mm
The Elgin 127 watch movement belongs to a series of movements with unknown differences between the models numbered 70 through 85, 87 through 89, and 100 through 109. It is likely that catalog numbers are used to differentiate between these movements based on variations in bridge and plate details. The Elgin 127 movement features manual wind functionality and includes a sub second function.
The Elgin 127 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
