Elgin 124
Ligne: 8.75'''
Jewels: 15/17
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 19.7 mm
Height: 3.6 mm
Hands: 1.20 x 0.60 / 0.18 mm

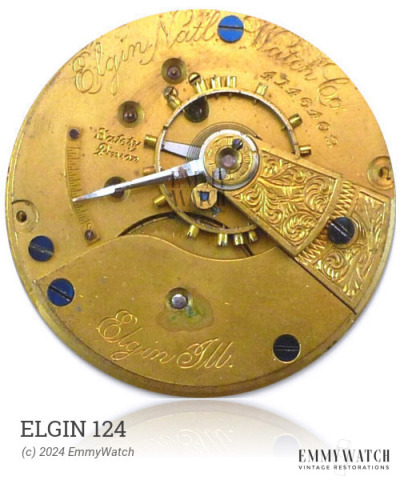

The Elgin 124 watch movement is a mechanical movement that features manual winding and a sub-second function. Produced around 1945, this movement belongs to a series of movements, including 125, 131, 135-139, 143, 145, and 147, which have differences that are not known.
The Elgin 124 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.080 x 280 x 7.5 mm | GR4078 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
