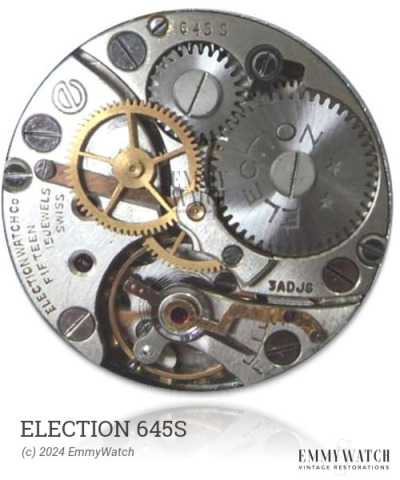

Election 645S
Ligne: 5.5 x 7.5'''
Jewels: 17
Lift Angle: 57°
Power Reserve: 48 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1959-
Size: 13.5 x 18 mm
Height: 3.25 mm
Hands: 1.10 x 0.65 mm
The Election 645S watch movement is a manual wind movement that was introduced in 1959 and is still in use today. It features Incabloc Shock Protection, which helps protect the movement from damage caused by external shocks.
The Election 645S features the following functions:
- Incabloc Shock Protection
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.080 x 220 x 6.5 mm | GR2869 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
