Ebel 134
Ligne: 8.75 x 9.25'''
Jewels: 17
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1951
Size: 19.4 x 20.7 mm
Height: 5.5 mm
Hands: 1.30 x 0.75 / 0.18 mm
Base: A. Schild 1320

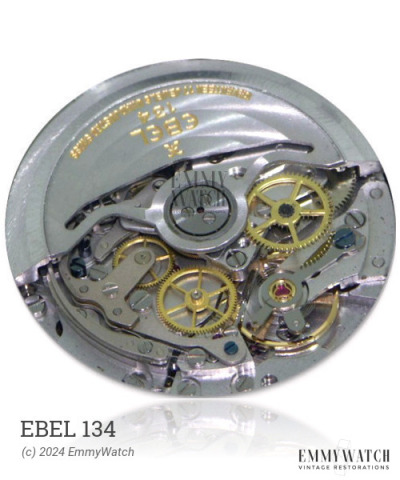

The Ebel 134 watch movement is similar to the 9AS movement, but it has an oval shape. It is an automatic mechanical movement with a sub second function. The period of its use is approximately around 1951.
The Ebel 134 features the following functions:
- Automatic Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.085 x 240 x 7.5 mm | GR3930X | Auto | Buy mainspring |
| 1.45 x 0.085 x 240 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
