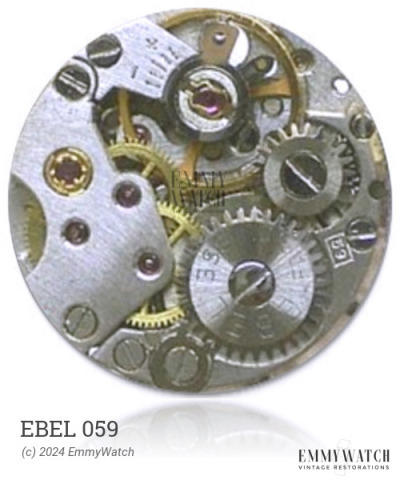

Ebel 059
Ligne: 17'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 38.7 mm
Height: 5.05 mm
Hands: 1.75 x 1.10 / 0.22 mm
Base: Cyma Tavannes 764
The Ebel 059 is an open face calibre watch movement that features a Breguet hairspring. It is equipped with a negative stem mechanism specifically designed for the US market. This movement is capable of stem winding and setting, as well as displaying a sub second function. It was commonly used around the period of 1935.
The Ebel 059 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.180 x 500 x 15.0 mm | GR5384 | Manual | Buy mainspring |
| 1.80 x 0.175 x 500 x 15.0 mm | GR5380 | Manual | Buy mainspring |
| 1.80 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.80-.18-500 15 | MS-95X | GR 5384 | Buy part |
| STAFF= TAV 764 .75 HSPG. | 100/2 | Buy part |
