Dugena 883
Ligne: 18'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1933-
Diameter: 40.5 mm
Height: 3.85 mm
Hands: 1.90 x 0.95 / 0.28 mm

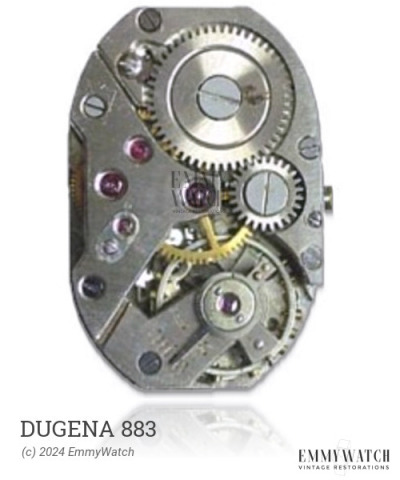

The Dugena 883 watch movement is an open face calibre that was introduced in 1933. It features a stem wind and set mechanism, allowing for convenient winding and setting of the watch time. Additionally, it includes a sub-second function, displaying the seconds on a separate sub-dial. This movement was utilized during the period from 1933 onwards.
The Dugena 883 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.200 x 450 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
