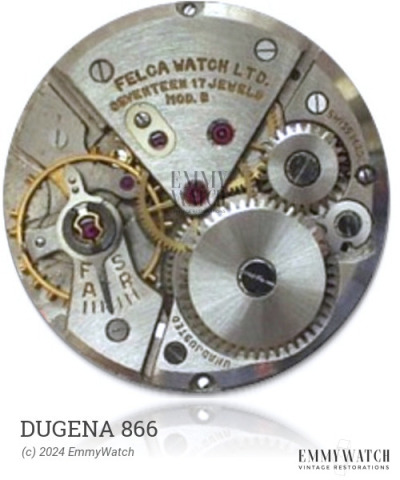

Dugena 866
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.55 mm
Height: 3.7 mm
Hands: 1.00 x 0.55 mm
The Dugena 866 is a manual wind mechanical watch movement, which was produced around 1945. Although the specific differences between the Dugena 866 and other movements such as the 1051, 1085, 1102, 1108, 1137, 1258, 1262, 1271, 1275, 1292, 1296, 1301, 1324, 1385, and 1452 are unknown, it should be noted that the Dugena 866 includes a sweep second function.
The Dugena 866 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 260 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
