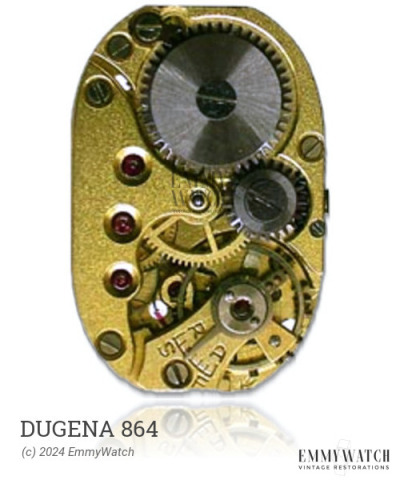

Dugena 864
Ligne: 8.75'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.60 / 0.18 mm
The Dugena 864 is a manual-winding mechanical watch movement that includes sub-second functionality. It belongs to a set of movements, which includes the 220, 222, and 223, that share similar characteristics, although the exact differences between them are not known. It was commonly used in watches produced around 1955.
The Dugena 864 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.085 x 265 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
