Dugena 709
Ligne: 17.5'''
Jewels: 15/16
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 39.8 mm
Height: 3.7 mm
Hands: 1.85 x 1.10 / 0.25 mm

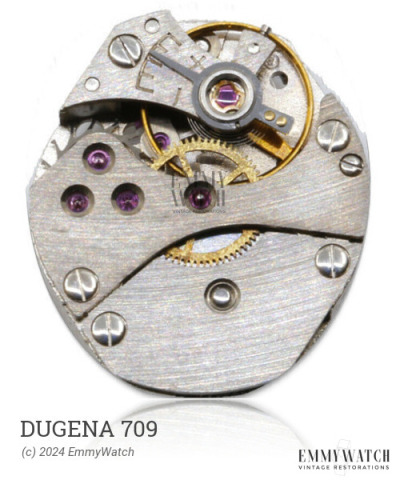

The Dugena 709 watch movement is an open face calibre that features a Breguet hairspring. The 522 movement is very similar to the 516 and 518 movements, with the main distinguishing feature being the varying bridge layouts. It functions as a stem wind and set movement with a sub-second hand. The Dugena 709 movement was commonly used around the year 1930.
The Dugena 709 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.170 x 390 x 13.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
