Dugena 613
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 25.9 mm
Height: 4.2 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Dugena 613 watch movement is a manual wind movement with a sweep second function. It was used during the period around 1960.
The Dugena 613 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 186 | Ordinary/None | Buy staff |
| 3808 | Incabloc | Buy staff |
| 4780 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 300 x 9.0 mm | GR3698 | Manual | Buy mainspring |
| 1.40 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

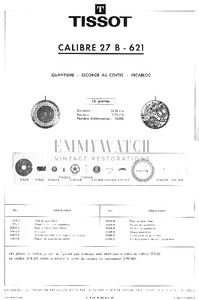

Parts Listing
