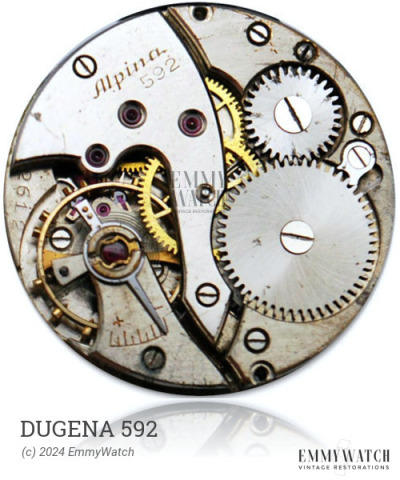

Dugena 592
Ligne: 13'''
Jewels: 15/17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 29.4 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 / 0.21 mm
The Dugena 592 watch movement, also referred to as the Wehrmachtswerk (Germany Military Movement), shares similarities with the 6410, 6411, and 6412 variants. The specific distinctions between these movements remain unclear, leaving the differences potentially limited to variations in bridge shapes. The Dugena 592 movement is a manual wind mechanism featuring sub-second functionality. Additionally, the date can be set by adjusting the time to the 22-24h range, although detailed information on this process is unavailable.
The Dugena 592 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 360 x 11.5 mm | GR5171 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
